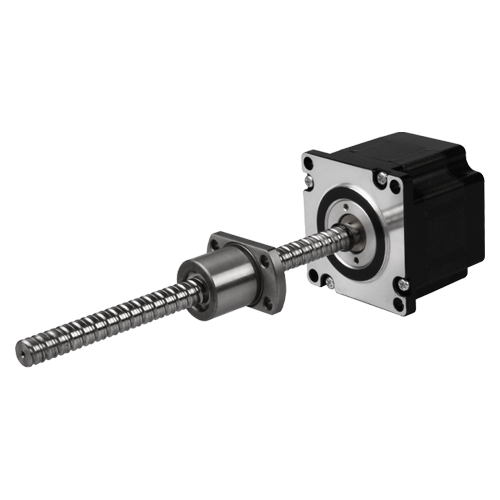

The size 23 External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
![Size 23 [56mm] Stepper Ball Screw Linear Actuators](/img/products/02/Ball_size23(57mm).png)
In a mobile environment, you can move left and right to see the contents (tables).
| Model No. | Rated Voltage[V] | Current[A [RMS]] | Resistance[Ω] | Inductance[mH] | Lead Wire No. | Motor Length "L"[mm] |
|---|---|---|---|---|---|---|
| 23E2120 | 3.5 | 2 | 1.75 | 4.1 | 4 | 45 |
| 23E2130 | 2.4 | 3 | 0.8 | 1.7 | 4 | 45 |
| 23E2225 | 5 | 2.5 | 2 | 5.2 | 4 | 65 |
| 23E2240 | 2.8 | 4 | 0.7 | 2 | 4 | 65 |
In a mobile environment, you can move left and right to see the contents (tables).
| Ball screw type | 1002 | 1004 | 1005 | 1010 | 1015 | 1020 | 1202 | 1210 |
|---|---|---|---|---|---|---|---|---|
| Ball Size | Ф1.5875 | Ф2.0 | Ф2.0 | Ф2.0 | Ф2.0 | Ф1.5875 | Ф1.5875 | Ф2.381 |
| Number of thread | 1 | 1 | 1 | 2 | 2 | 4 | 1 | 2 |
| Thread direction | Right | |||||||
| Shaft root dia. | Ф8.6 | Ф8.2 | Ф8.2 | Ф8.4 | Ф8.4 | Ф8.7 | Ф10.6 | Ф10.2 |
| Number of circuit | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 0.7×4 | 3.7×1 | 1.7 x 2 |
| Shaft, nut material | SCM415H | |||||||
| Surface hardness | HRC58~62 | |||||||
| Anti-rust treatment | Anti-rust oil | |||||||
| Grade | C7 | |||||||
| Nute size | A | B | C | D | H | W | X | E | Axial play (mm) | Dynamic load[N] | Static load[N] |
|---|---|---|---|---|---|---|---|---|---|---|---|
| BS1202 | 37 | 5 | 28 | 20 | 24 | 29 | 4.5 | ≤0.02 | 1600 | 3700 | |
| BS1205 | 40 | 10 | 30 | 24 | 30 | 32 | 4.5 | 15 | ≤0.02 | 6610 | 13160 |
| BS1210 | 40 | 10 | 42 | 24 | 30 | 32 | 4.5 | 27 | ≤0.02 | 6420 | 12870 |
| BS1220 | 40 | 5 | 46 | 24 | 24 | 32 | 4.5 | 37 | ≤0.02 | 6700 | 10100 |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 50 | 100 | 192 | 200 | 250 | 256 | 360 | 400 | 500 | 720 | 900 | 1000 | 1250 | 2000 | 2500 | 4000 | 5000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | ||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M | N | O | P | Q |
In a mobile environment, you can move left and right to see the contents (tables).
| Resolution(CPR) | 64 | 100 | 200 | 500 | 1000 | 1800 | 2000 | 2500 | 3600 | 4000 | 5000 | 7200 | 8000 | 10000 |
| Single ended output | 0 | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | |||||
| Differential output | A | B | C | D | E | F | G | H | I | J | K | L | M |
![Size 23 [57mm]](/img/products/09/brake/23/1. Image_Brake 57mm.png)
In a mobile environment, you can move left and right to see the contents (tables).
| Rated voltage | DC 24V ± 5% | |
|---|---|---|
| Resistance | 141Ω ± 10% | |
| Power | 5W | |
| Hold torque | >2N.M | |
| Insulation | B | |
| Insulation resistance | >100MΩ (DC500V) | |
| Dielectric strength | AC 1000V for 1 sec | |
| Retraction time | 50ms | |
| Release time | 50ms | |
| Gyration gap | 1° | |
| Emergency brake time | 200 | |
| Lifetime | 2,000,000 times | |
| Noise level | <60db | |

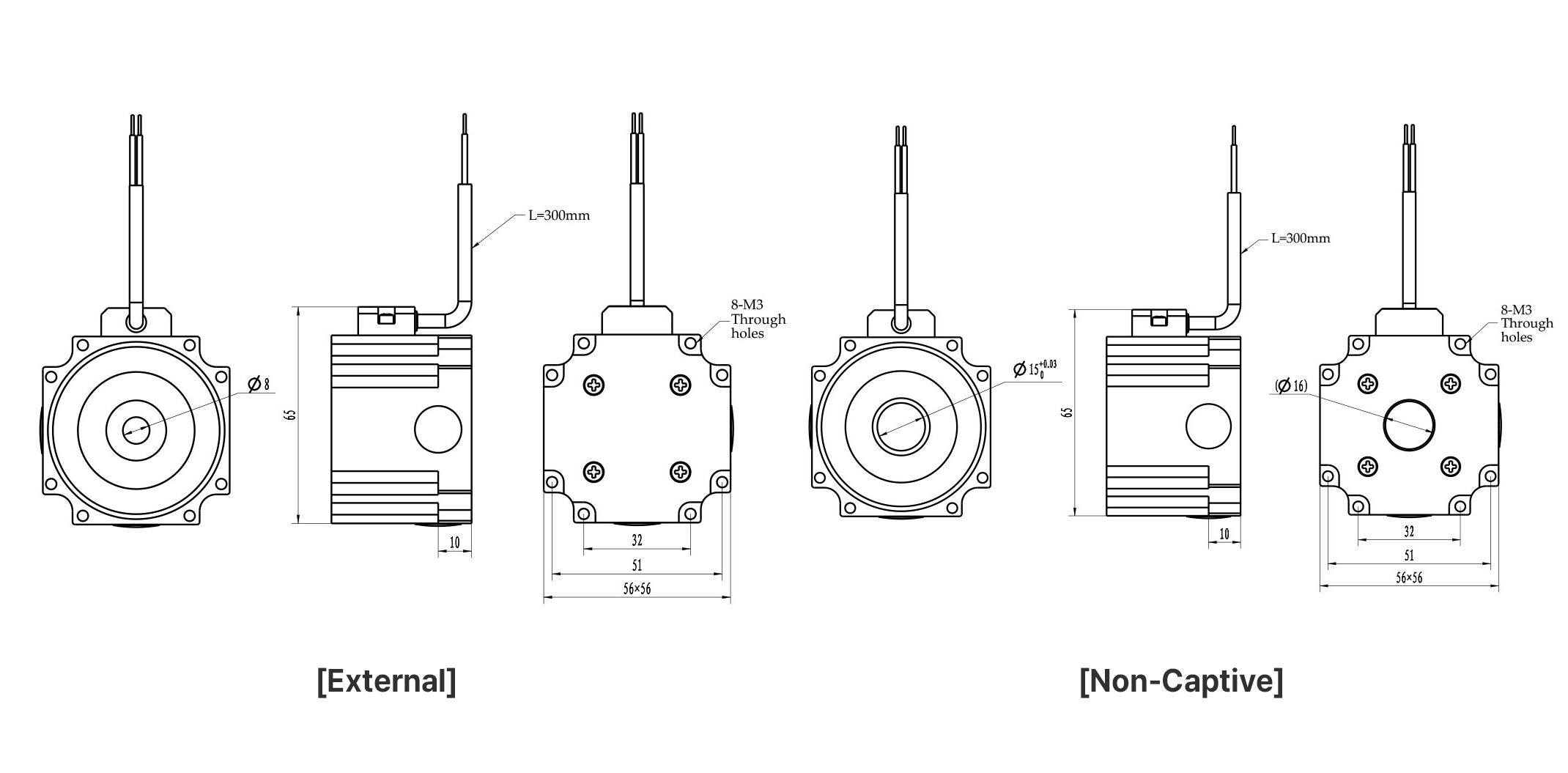

![Size 23 [57mm]](/img/products/09/brake/23/2. dimension-brake 57mm.png)
