| Model | Phase | Step angle (°) |
Rated current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding torque (N·m) |
Rotor inertia (g.cm²) |
Length (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

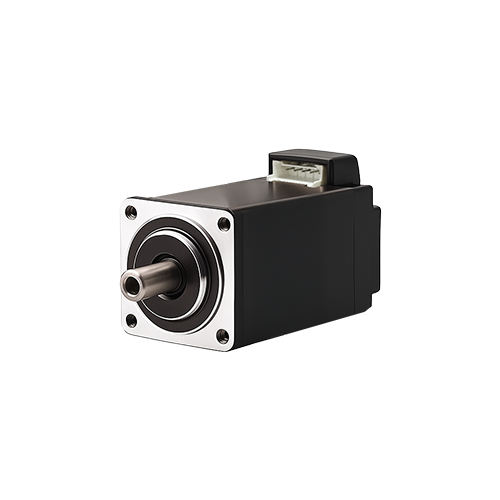

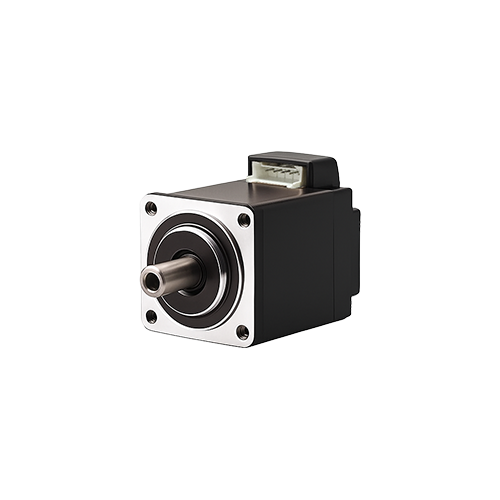

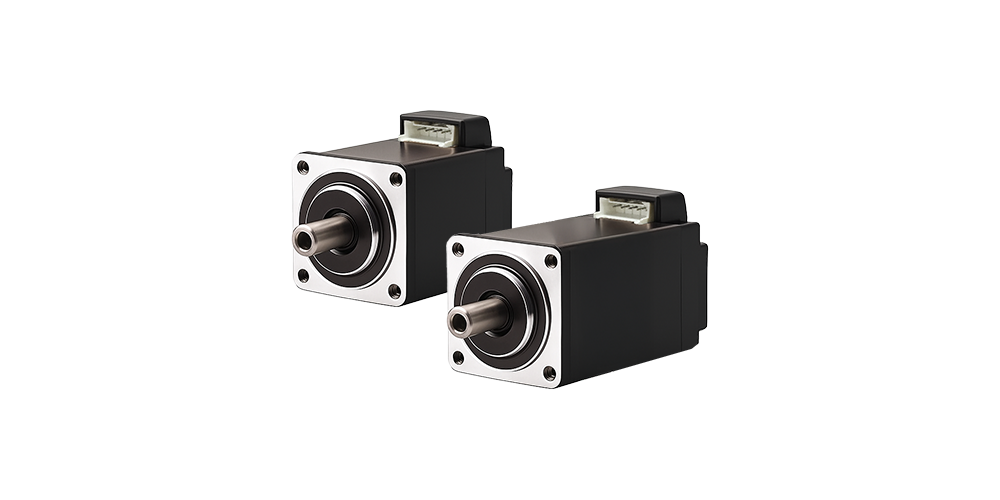

| 11H5033-120-5AT | 5 | 0.72 | 1.2 | 0.56 | 0.2 | 0.05 | 9 | 33 | 0.11 |
| 11H5052-120-5AT | 5 | 0.72 | 1.2 | 0.88 | 0.45 | 0.09 | 18 | 52 | 0.2 |
| Permissible radial load (5mm distance from mounting surface) |
Permissible radial load (10mm distance from mounting surface) |
Permissible radial load (15mm distance from mounting surface) |
Permissible radial load (20mm distance from mounting surface) |
|---|---|---|---|
| 50N | 35N | 25N | 20N |
.png)
.png)

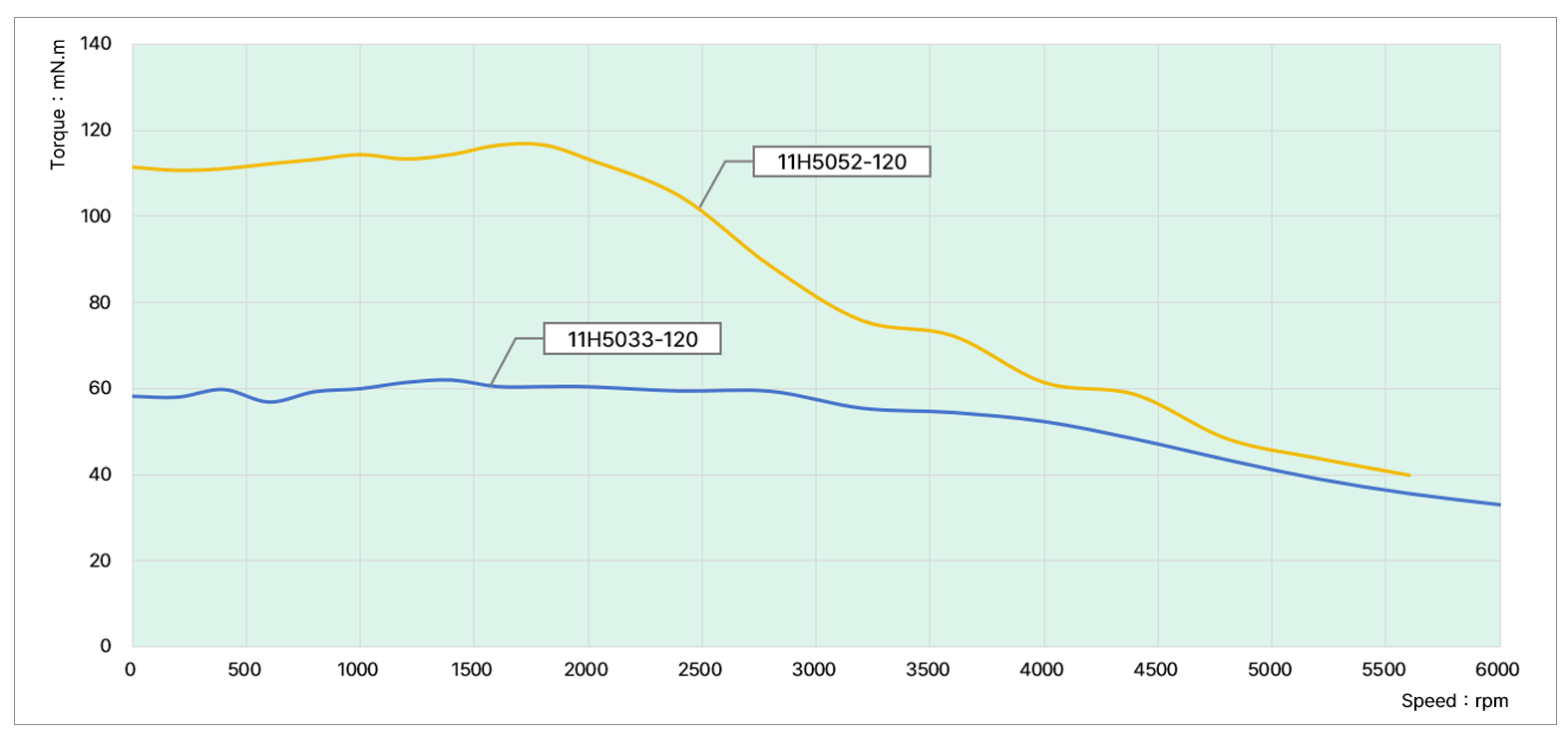

TEST CONDITION
Testing Voltage: 24Vdc, Driver Model: DS-OLF2-FPD, Rated Current: 1.2A (rms)
