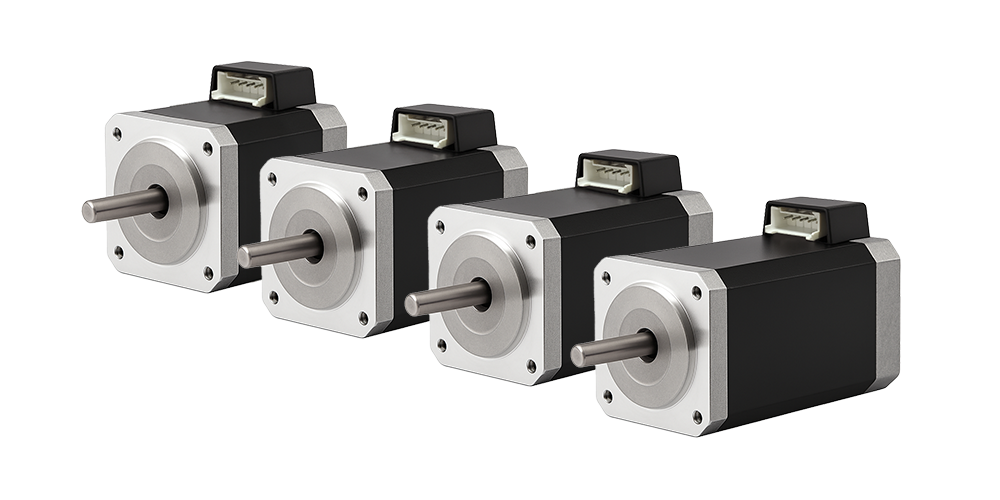

| Model | Phase | Step angle (°) |
Rated current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding torque (N·m) |
Rotor inertia (g.cm²) |
Length (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

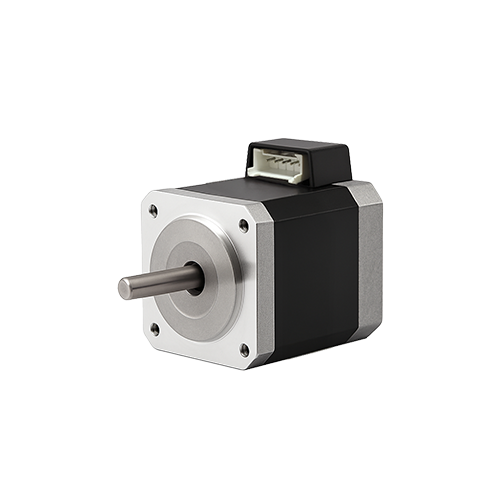

| 17H5034-180-5AT | 5 | 0.72 | 1.8 | 0.34 | 0.35 | 0.22 | 35 | 35 | 0.24 |

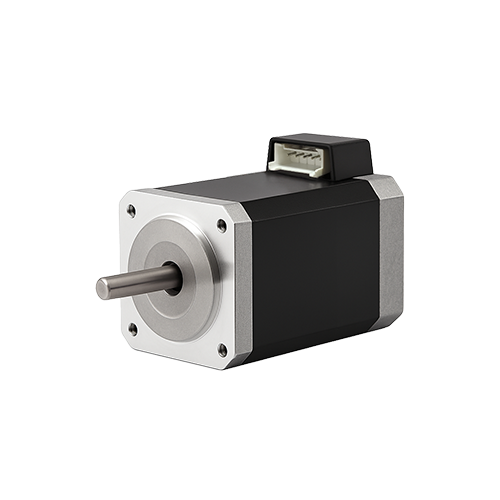

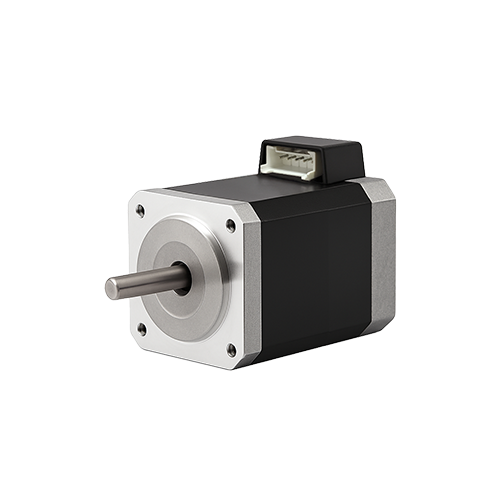

| 17H5041-180-5AT | 5 | 0.72 | 1.8 | 0.45 | 0.55 | 0.3 | 54 | 41 | 0.3 |
| 17H5049-180-5AT | 5 | 0.72 | 1.8 | 0.5 | 0.7 | 0.37 | 77 | 49 | 0.36 |

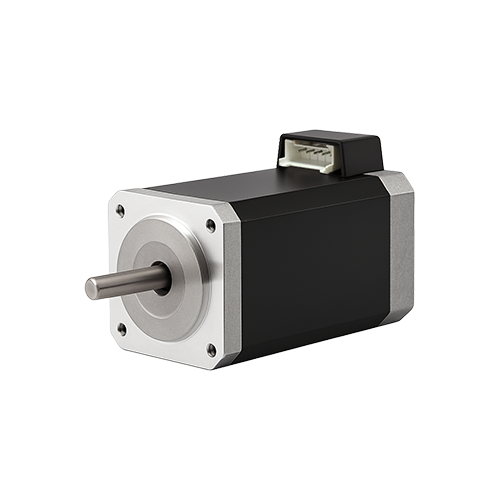

| 17H5061-180-5AT | 5 | 0.72 | 1.8 | 0.65 | 1.1 | 0.5 | 110 | 61 | 0.5 |
| Permissible radial load (5mm distance from mounting surface) |
Permissible radial load (10mm distance from mounting surface) |
Permissible radial load (15mm distance from mounting surface) |
Permissible radial load (20mm distance from mounting surface) |
|---|---|---|---|
| 50N | 40N | 25N | 20N |
.png)
.png)
.png)
.png)

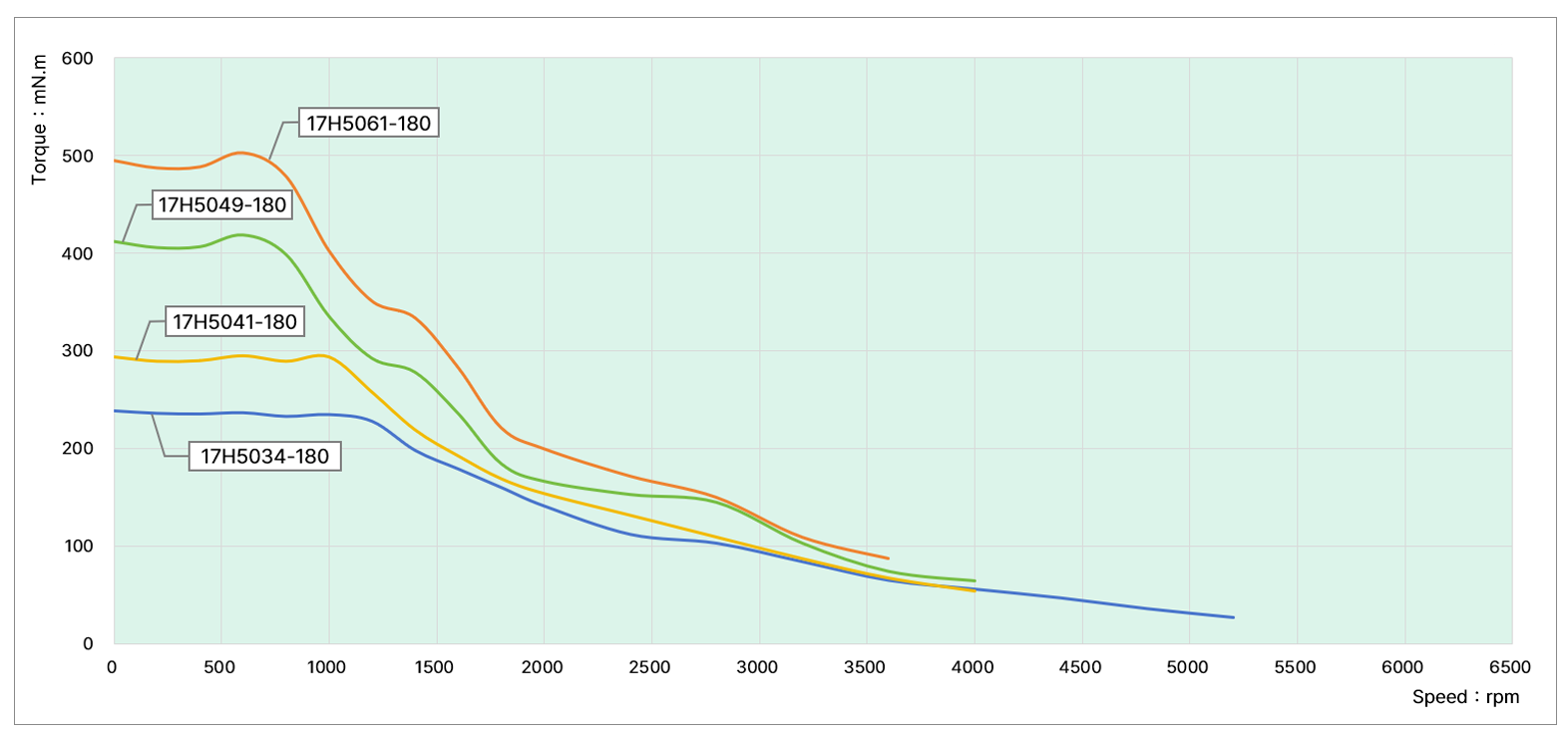

TEST CONDITION
Testing Voltage: 24Vdc, Driver Model: DS-OLF2-FPD, Rated Current: 1.8A (rms)
