| Model | Phase | Step angle (°) |
Rated current (A) |
Resistance (Ω) |
Inductance (mH) |
Holding torque (N·m) |
Rotor inertia (g.cm²) |
Length (mm) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|

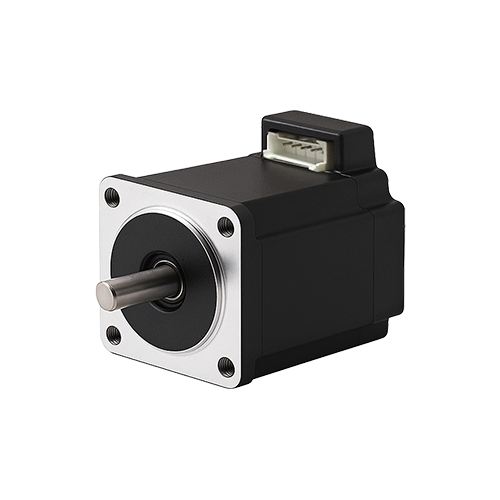

| 24H5044-240-5AL | 5 | 0.72 | 2.4 | 0.3 | 0.55 | 0.6 | 230 | 44 | 0.55 |
| Permissible radial load (5mm distance from mounting surface) |
Permissible radial load (10mm distance from mounting surface) |
Permissible radial load (15mm distance from mounting surface) |
Permissible radial load (20mm distance from mounting surface) |
|---|---|---|---|
| 210N | 170N | 140N | 120N |
.png)

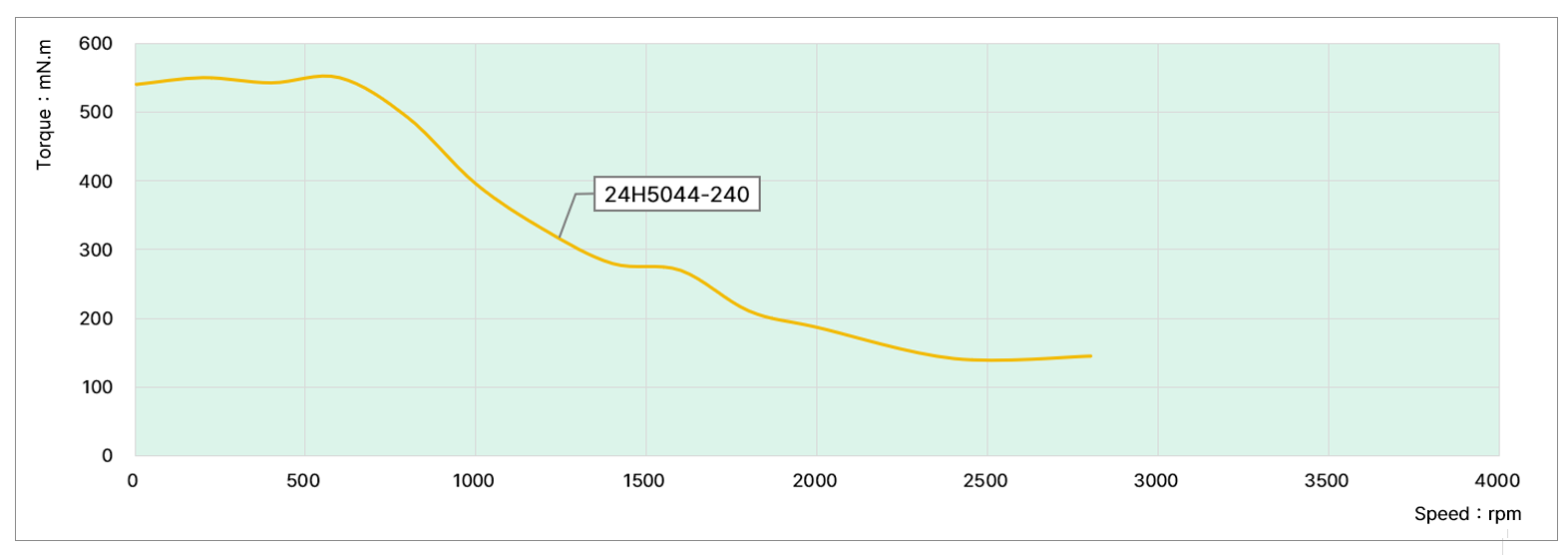

TEST CONDITION
Testing Voltage: 24Vdc, Driver Model: DS-OLF2-FPD, Rated Current: 2.4A (rms)
