Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

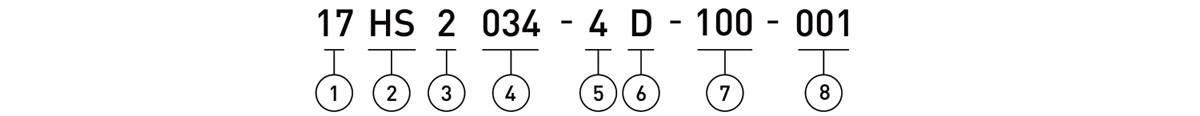

① Motor Size

In a mobile environment, you can move left and right to see the contents (tables).

Motor Size [mm]	14	20	28	35	42	57	60	86
Motor Size [NEMA]	6	8	11	14	17	23	24	34

② Motor Type

HS = Hollow Shaft Stepper Motor

③ Motor Step Angle [°]

2 = 2-phase, 1.8° step angle
4 = 2-phase, 0.9° step angle

④ Motor Length

034 = 34mm

⑤ Number of Lead Wires

4 = Bipolar (4-wire leads)
6 = Unipolar (6-wire leads)

⑥ Shaft Configuration

D = Double Shaft
S = Single Shaft
* For shaft customization, please contact DINGS'

⑦ Rated current

XXX = Rated Current ×100(A)

⑧ Customer Sequence Number

Example

In a mobile environment, you can move left and right to see the contents (tables).

EXAMPLE	17HS2034-4D-100-001
Description	Size 42mm Hollow Shaft Stepper Motor Step Angle 1.8° Motor Body Length 34mm 4 Flying leads Dual Shaft Rated current 1.0A Customer Sequence Code 001
