110mm Brushless DC Motor has Max. 4.6N·m rated torque and it can generate 710W capacity of rated power.
110mm motor has Star winding connection and 5 pole pairs motors with Hall sensors feed back method as standard.
In addition, gearbox and incremental encoder is available.
In a mobile environment, you can move left and right to see the contents (tables).
| Motor part number | - | 110ZWS132XE-1 | |
|---|---|---|---|
| Body length (LT) | mm | 131±1 | |
| Pole pair | - | 5 | |
| Phase-to-phase resistance | Ω | 1.04 | |
| Phase-to-phase inductance | mH | 3.658 | |
| Winding connection method | - | Star shape | |
| Insulation class | - | B | |
| Duty type | - | S1 | |
| Commutation angle | - | 120° | |
| Insulation strength(Withstand voltage) | - | 1000VAC/1KHz/1mA/1s | |
| Insulation resistance | - | 100 MOhm 20C | |
| Weight | Kg | 3 | |
| Rated voltage | V | 120 | |
| Rated power | W | 710.0 | |
| Rated torque | N·m | 4.6 | |
| Rated speed | RPM | 1500 | |
| Rated current | A | 9.6 | |
| No load speed | RPM | 1850 | |
| No load current | A | 0.65 | |
| Motor efficiency | % | 90 | |
| Noise(Ambient noise 20db,test distance 1m) | dB | ＜50 | |
| Enclosure-Ambient thermal resistance | K/W | 0.36 | |
| Ambient temperature | ℃ | 20 | |
| Maximum winding temperature | ℃ | 88 | |
| Torque constant | N·m/A | 0.479 | |
| Back-EMF constant / Effective value | V/Krpm | 67.83 | |
| Peak torque | N·m | 13.8 | |
| Peak current | A | 28.8 | |
| Rotor inertia | Kg·cm² | 10.2 | |
_thumb.png)
In a mobile environment, you can move left and right to see the contents (tables).

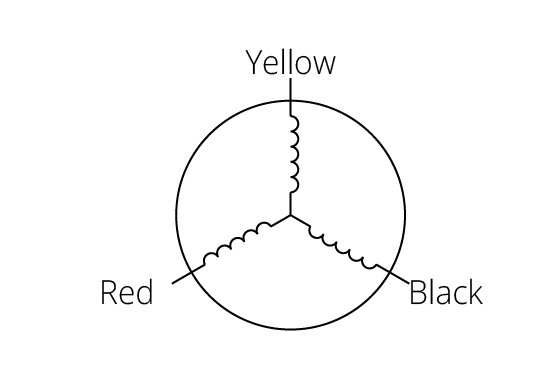

| Lead-out type | Lead-out color | Function | |
|---|---|---|---|
| UL3265 AWG16 | Yellow | U phase | |
| Red | V phase | ||
| Black | W phase | ||
