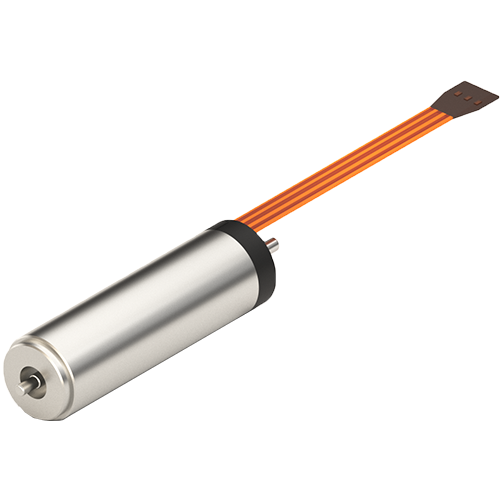

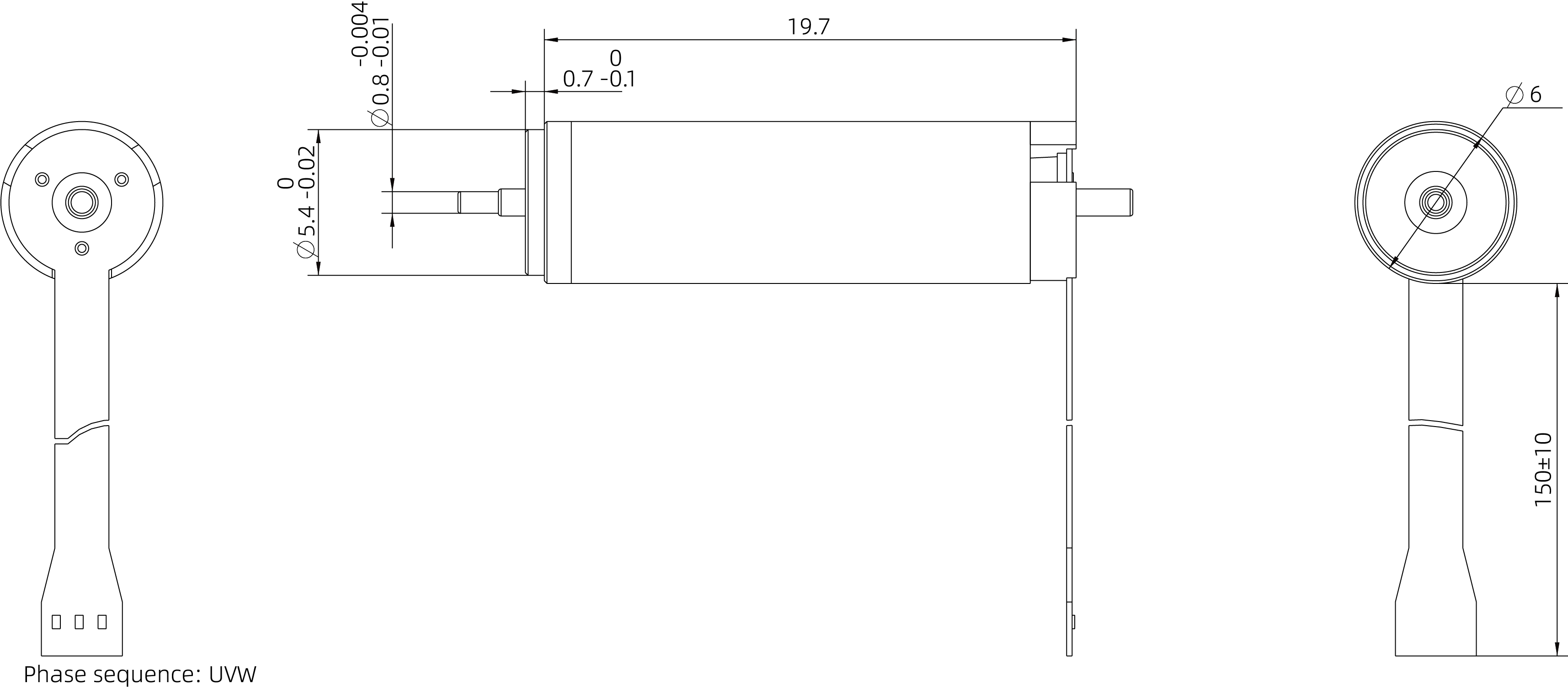

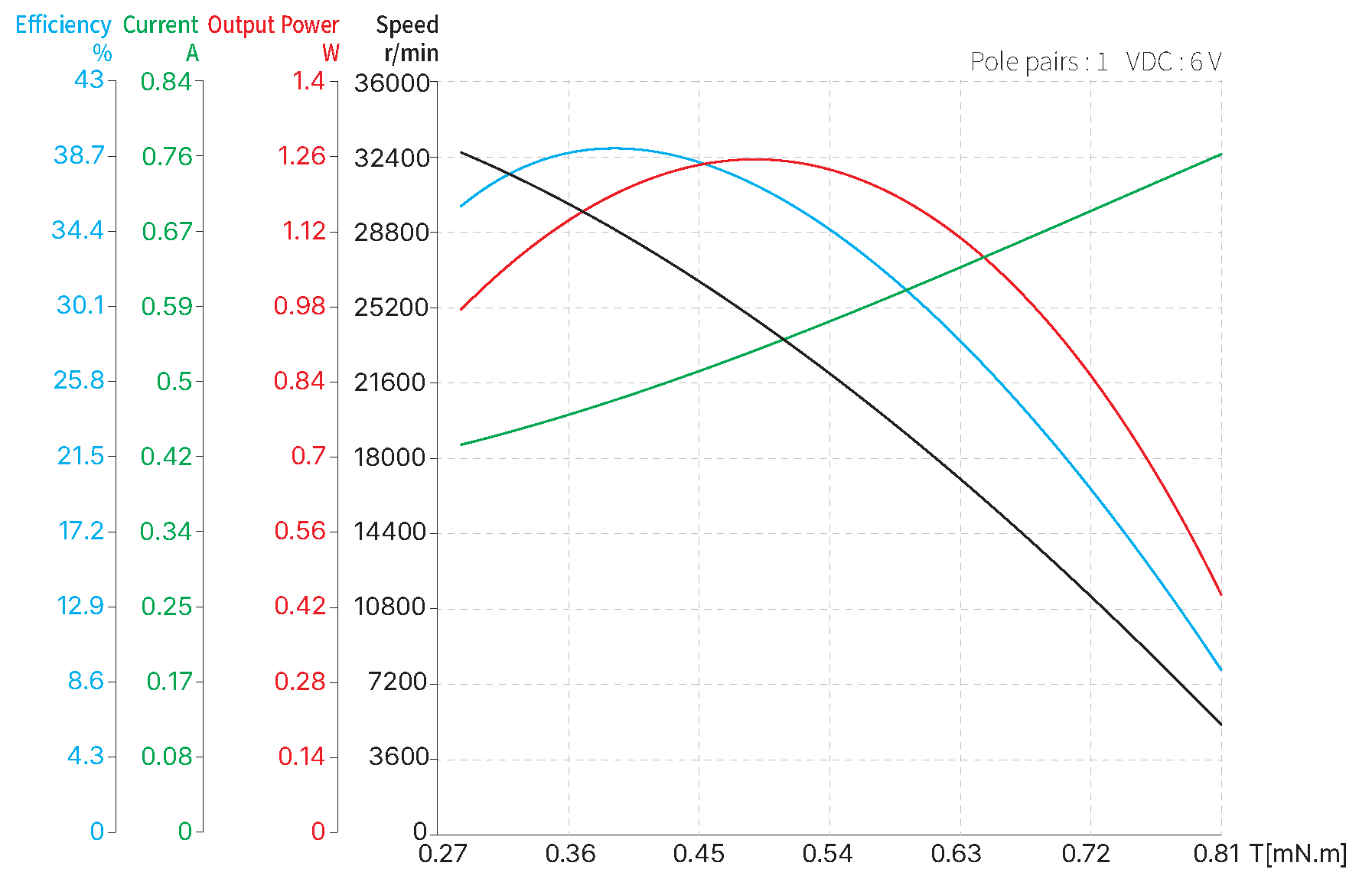

6ZWWC20 Rated Power is 1W and Peak Torque is 0.66mN.m.
In a mobile environment, you can move left and right to see the contents (tables).
| Motor part number | 6ZWWC20 | ||
|---|---|---|---|
| Pole pairs | - | 1 | |
| Phase-to-phase resistance | Ω | 5.9 | |
| Phase-to-phase inductance | mH | 0.04 | |
| Winding connection method | - | Delta connection | |
| Insulation class | - | B | |
| Duty type | - | S2 | |
|
Insulation strength (Withstand voltage) |
- | 300VAC/1KHz/1mA/1s | |
| Insulation resistance | - | 100MΩ/300VDC | |
| Weight | g | 3 | |
| Rated voltage | V | 6 | |
| Rated power | W | 1 | |
| Rated torque | mN·m | 0.3 | |
| Rated speed | RPM | 32000 | |
| Rated current | A | 0.46 | |
| No load speed | RPM | 48500 | |
| No load current | A | 0.09 | |
| Motor efficiency | % | 37 | |
|
Noise (Ambient noise 20dB, test distance 1m) |
dB | ＜50 | |
|
Thermal Resistance (No-load) |
K/W | 39.9 | |
| Ambient temperature | ℃ | 22.3 | |
| Max winding temperature | ℃ | 63 | |
| Torque constant | mN·m/A | 0.65 | |
|
Back-EMF constant - peak value |
V/Krpm | 0.1 | |
|
Back-EMF constant - effective value |
V/Krpm | 0.07 | |
| Peak torque | mN·m | 0.66 | |
| Peak current | A | 1 | |
| Rotor inertia | g·cm² | 0.005 | |
| Mechanical time constant | ms | 6.92 | |
| End bell | - | Stainless steel | |
| Bearing | - | Deep groove ball bearing | |
| Magnet | - | Sinter NdFeB | |
| Rotation shaft | - | Carbon steel | |
| Stage | - | Stage 1 | Stage 2 | Stage 3 |
|---|---|---|---|---|
| Gear ratio | X : 1 | 3.9 | 15 | 57 |
| Max. backlash | ° | 1.8 | 2.0 | 2.2 |
| Max. continuous output power | W | 0.65 | 0.4 | 0.2 |
| Max. peak output power | W | 0.8 | 0.5 | 0.25 |
| Max. continuous input speed | rpm | 20000 | 20000 | 20000 |
| Max. peak input speed | rpm | 25000 | 25000 | 25000 |
| Max. continuous torque | N.m | 0.002 | 0.005 | 0.01 |
| Max. peak torque | N.m | 0.005 | 0.01 | 0.02 |
| Max. efficiency | % | 88 | 77 | 68 |
| Weight | g | 1.6 | 2 | 2.4 |
| Gearbox length L | mm | 4.7 | 7.2 | 9.7 |
