DINGS' Slotless Brushless DC Motor, 30ZWWC65 can avoid the pulsation of air gap magnetic induction caused by uneven magnetic resistance in the teeth.
It can eliminate the pulse loss in the armature core and the surface loss on the main pole surface.
30ZWWC65 Slotless Brushless DC Motor has high durability, low electrical noise and high efficiency.
Maximum efficiency of motor reaches 86% and this motor is suitable for the servo system which needs quick movement and high power.
30ZWWC65 Rated Power is 65W and Peak Torque is 1122.08mN.m.
| Motor part number | 30ZWWC65 | |
|---|---|---|
| Pole pair | - | 2 |
| Phase resistance | Ω | 0.5 |
| Phase inductance | mH | 0.05 |
| winding connection method | - | Star shape |
| Insulation class | - | B |
| Duty type | - | S1 |
| Feedback method | - | Hall sensors |
| Commutation angle | - | 120° |
| Insulation strength (Withstand voltage) | - | 500VAC/1KHz/1mA/1s |
| Insulation resistance | - | 100 MΩ/500VDC |
| Weight | g | 230 |
| Rated voltage | V | 24 |
| Rated power | W | 65 |
| Rated torque | mN·m | 90 |
| Rated speed | RPM | 6900 |
| Rated current | A | 3.85 |
| No load speed | RPM | 9200 |
| No load current | A | 0.3 |

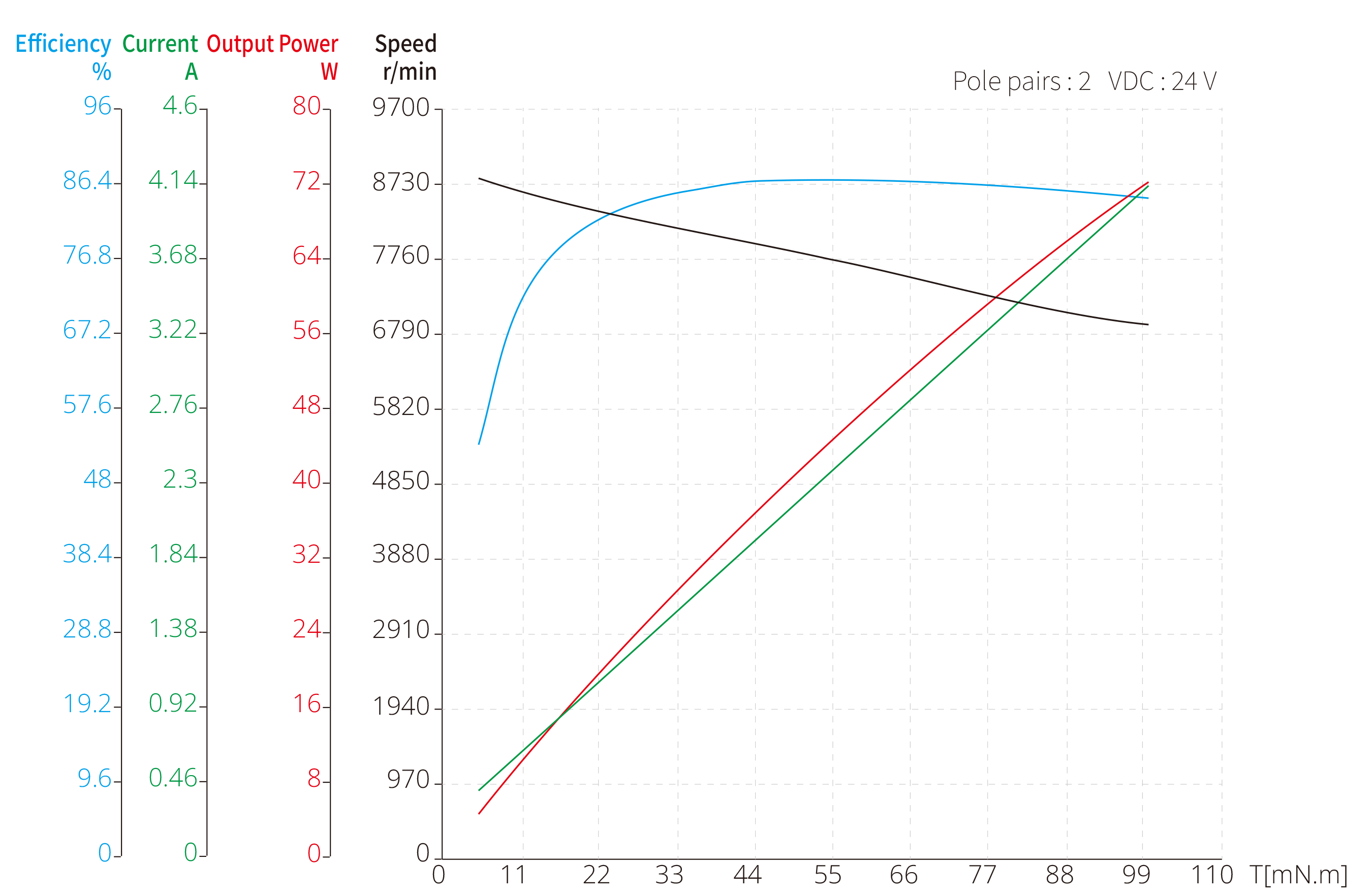

| Motor efficiency | % | 86 |
|
Noise (Ambient noise 20db, test distance 1m) |
dB | <50 |
|
Case - Environmental thermal resistance (no load) |
K/W | 0.31 |
| Motor thermal time constant (no load) | S | 1200 |
| Ambient temperature | ℃ | 23 |
| Max. winding temperature (no load) | ℃ | 43.2 |
| Torque constant | mNm/A | 23.38 |
| Back-EMF constant - peak value | V/Krpm | 3.46 |
| Back-EMF constant - effective value | V/Krpm | 2.45 |
| Peak torque | mN·m | 1122.08 |
| Peak current | A | 48 |
| Inertia moment | g·cm² | 28 |
| Mechanical time constant | ms | 2.56 |
| End bell | - | Stainless steel |
| Bearing | - | Deep Groove Ball Bearing |
| Magnet | - | Sinter NdFedB |
| Rotation shaft | - | Carbon Steel |
In a mobile environment, you can move left and right to see the contents (tables).
| Stage | - | Stage 1 | Stage 2 | Stage 3 | Stage 4 | |
|---|---|---|---|---|---|---|
| Reduction Ratio | X : 1 | 3.947, 5.308 | 16, 21, 26, 28, 35 | 62, 83, 103, 111, 138, 150, 172, 186, 231 |
243, 326, 406, 439, 546, 590, 679, 734, 794, 913, 987, 1135, 1227, 1526 |
|
| Max. Continuous Torque | N.m | 1.7 | 4 | 5.5 | 7.3 | |
| Max. Continuous Output Power | W | 90 | 60 | 30 | 18 | |
| Max. Efficiency | % | 90 | 80 | 75 | 65 | |
| Max. Backlash | ° | 0.5 | 0.6 | 0.6 | 0.7 | |
| Motor Gear Hole (ID) | mm | Φ3-0.015/-0.023 Φ4-0.017/-0.025 |
Φ3-0.015/-0.023 Φ4-0.017/-0.025 |
Φ2-0.015/-0.023 Φ3-0.015/-0.023 Φ4-0.017/-0.025 |
Φ2-0.015/-0.023 Φ3-0.015/-0.023 Φ4-0.017/-0.025 |
|
| Gearbox Length L | mm | 24.2 | 36.9 | 43.5 | 50.2 | |
| Weight | g | 103 | 150 | 174 | 198 | |
