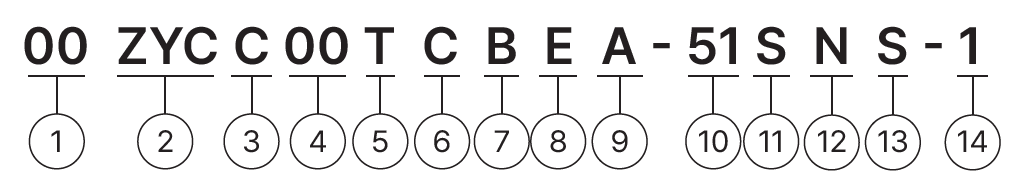

| ① Frame Size |
|
||||||
|---|---|---|---|---|---|---|---|
| ② Product Name |
ZYC = Brushed Coreless DC Motor |
||||||
| ③ Motor Shape | C = Circular Type S = Square Type |
||||||
| ④ Motor Length | Unit: mm when the length involves decimal points, use "_" instead. |
||||||
| ⑤ Motor Casing |
L = Aluminum T = Stainless Steel / Iron X = No Housing |
||||||
| ⑥ Brush Type |
C = Graphite Brush P = Metal-Graphite Brush |
||||||
| ⑦ Option |
EKX = Encoder (X = Encoder Resolution) B = Brake GX= Gearbox (X = Gear Ratio) Note: When selecting multiple options, please arrange them in alphabetical order (e.g., "BEG") |
||||||
| ⑧ Structure |
E = External Type N = Non-Captive Type C = Electric Cylinder (Captive) Type K = Kaptive Type |
||||||
| ⑨ Lead Screw Code | Please refer to lead screw code selection table | ||||||
| ⑩ Screw Length / Stroke |
Kaptive = stroke distance Non-captive = total length of screw External = screw extension length from the mounting flange |
||||||
| ⑪ Screw Surface Treatment |
T = Teflon coating S = Standard (No teflon coating) |
||||||
| ⑫End Machining |
M = Metric U = UNC S = Smooth C = Customization N = None |
||||||
| ⑬ Nut Style |
S = Standard flange nut A = Anti-backlash nut C = Customized nut |
||||||
| ⑭ Customer Sequence Number | |||||||
| Example |
|
