Part Number Construction

Part Number Construction

Please choose right part number as following guide line as below.

In a mobile environment, you can move left and right to see the contents (tables).

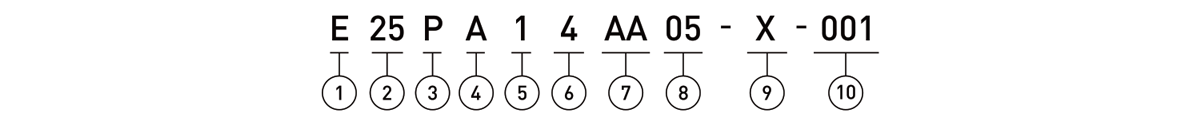

① Linear Actuator Type E = External
N = Non-Captive
K = Kaptive
② Motor Size 20mm
25mm
36mm
③ PM Stepper Motor
④ Mounting A = Flange and wiring box
B = Flange only
C = Wiring box only
D = No flange or wiring box
A & C is not available for Uni-Polar (6 wiring)
⑤ Step Angle 1 = 7.5°
2 = 15°
⑥ Wiring Number 4 = Bi-Polar (4 wiring)
6 = Uni-Polar (6 wiring)
⑦ Lead code
⑧ Winding Code 05 = 5V
12 = 12V
⑨ Screw Stroke / Length Kaptive - Stroke distance
Non-captive - Total length of screw
External - Screw extension length from the mounting flange
⑩ Customer Sequence Number
Example

In a mobile environment, you can move left and right to see the contents (tables).

Example E25PA14AA05-X-001
Description Φ25mm Size
External type with mounting flange and wiring box
2 Phase 7.5° Step angle
Bi-polar
Screw Lead AA
5V Winding
Screw extension Xmm
Customization sequence number is 001
