Size 17 [42mm] Hollow Shaft Stepper Motor

The size 17 [42mm] Hollow Shaft Stepper Motor has Max. 0.48N·m of holding torque.

For special windings or customization of shaft, also hollow type of encoder assembly, Please contact DINGS' for further information.

42mm Hollow Shaft Stepper Motor images

Motor Characteristics

In a mobile environment, you can move left and right to see the contents (tables).

Model No. Rated Voltage
(V)
Current
(A)
Resistance
(Ω)
Inductance
(mH)
Holding Torque
(N·m)
Detent Torque
(N·m)
Motor length
(mm)
17HS2034 3.8 1.0 3.6 5.0 0.25 0.014 34.1
17HS2048 2.25 2.5 1.0 1.8 0.48 0.018 48.1

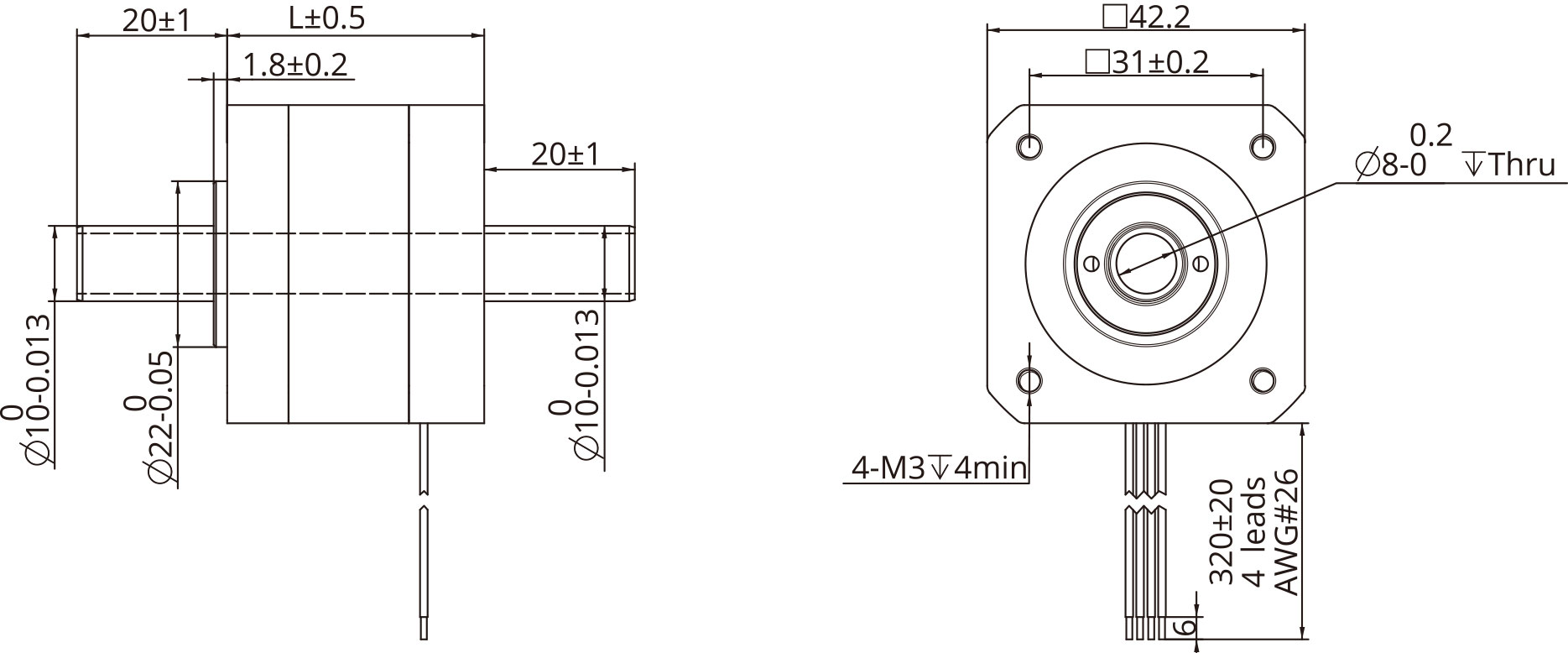

Dimensional Drawing

Torque Performance Curves

Torque Performance curves image

Options

Encoder Option
EK2 Encoder images
EK2 Encoder images

In a mobile environment, you can move left and right to see the contents (tables).

Resolution(CPR) 50 100 192 200 250 256 360 400 500 720 900 1000 1250 2000 2500 4000 5000
Single ended output 0 1 2 3 4 5 6 7 8 9 10 11 12
Differential output A B C D E F G H I J K L M N O P Q
EK4 Encoder images
EK4 Encoder images

In a mobile environment, you can move left and right to see the contents (tables).

Resolution(CPR) 625 800 1000 1250 1600 2000 2500 3200 4000
Single ended output - - - - - - - - -
Differential output - C - - - - - -
