Size 23 [57mm] Hollow Shaft Stepper Motor

The size 23 [57mm] Hollow Shaft Stepper Motor has Max. 1.6N·m of holding torque.

For special windings or customization of shaft, also hollow type of encoder assembly, Please contact DINGS' for further information.

42mm Hollow Shaft Stepper Motor images

Motor Characteristics

In a mobile environment, you can move left and right to see the contents (tables).

Model No. Rated Voltage
(V)
Current
(A)
Resistance
(Ω)
Inductance
(mH)
Holding Torque
(N·m)
Detent Torque
(N·m)
Motor length
(mm)
23HS2045 3.5 2.0 1.75 4.1 0.8 0.020 45
23HS2065 5.0 2.5 2.0 5.2 1.6 0.040 65

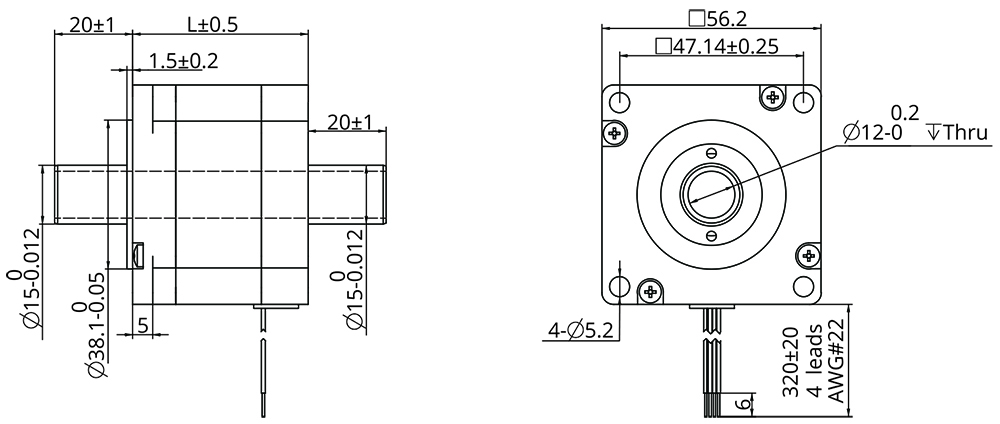

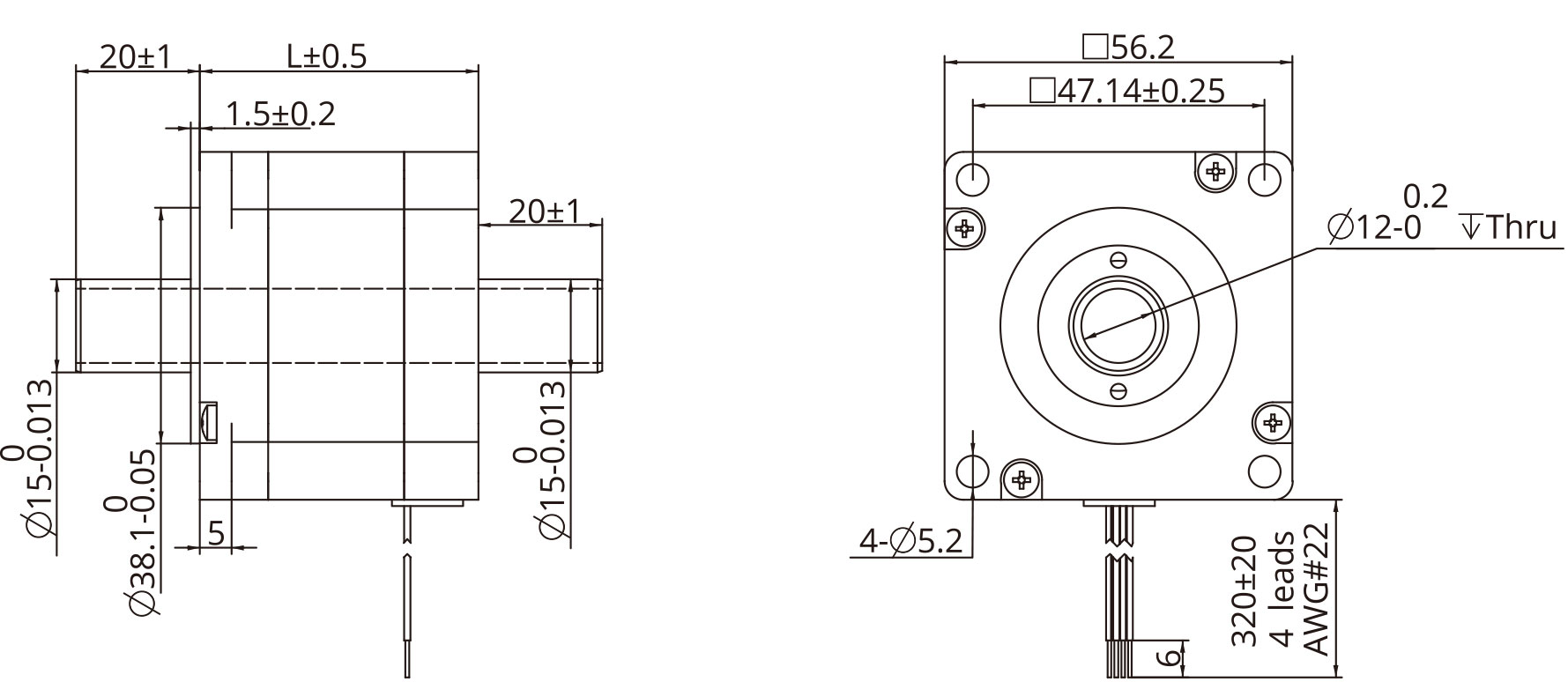

Dimensional Drawing

Torque Performance Curves

Torque Performance curves image

Options

Encoder Option
EK3 Encoder images
EK3 Encoder images

In a mobile environment, you can move left and right to see the contents (tables).

Resolution(CPR) 64 100 200 500 1000 1800 2000 2500 3600 4000 5000 7200 8000 10000
Single ended output 0 1 2 3 4 5 6 7 8
Differential output A B C D E F G H I J K L M
